EPG FILTER BED LIQUID LEVEL MOUNT

The purposeful design offers reliable installation and protection of JBLT-600S Junction Boxes and submersible level sensors, allowing for easy service. It's designed to monitor liquid level in wetlands, sand filter beds & other surface water applications.

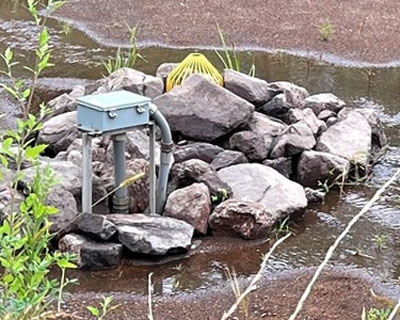

Typical installation involves placing and attaching the stand directly on top of a pump vault. The purpose of the perforated stilling well is to provide protection for the level sensor and most importantly, counter any turbulence present from the flow of water.

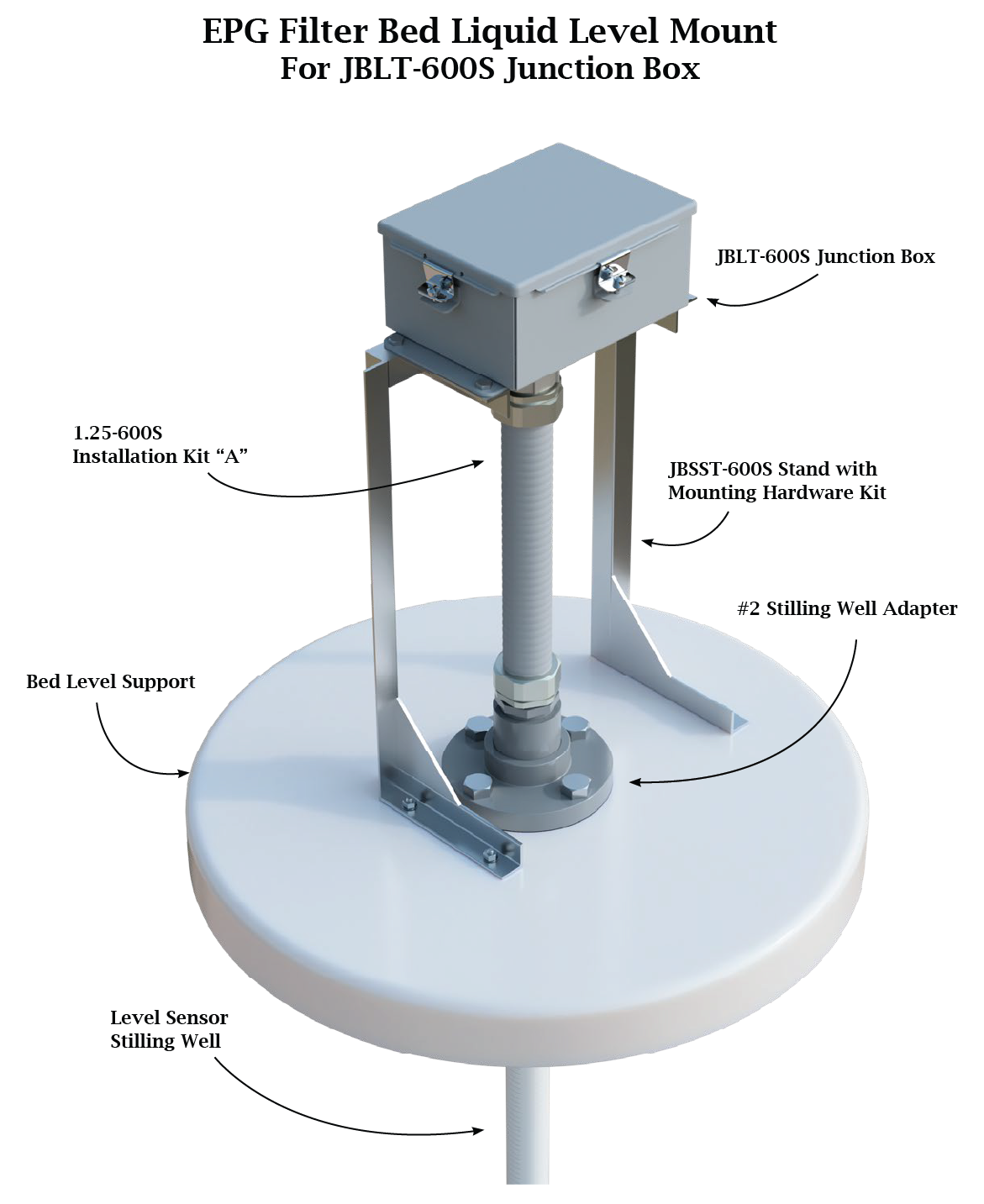

• JBLT-600S Junction Box - Drawing
• JBSST Stainless Steel Stand
• Stilling Well Adapter (Flange)
• Level Sensor Stilling Well
• Bed Level Support
• Installation Kit (Conduit & Fittings)

The importance of reliable level meters and sensors goes well beyond simply turning a pump on and off. Much can be learned about the overall health of a surface water, water supply or wastewater system. Accurate, consistent monitoring of liquid levels can assist in troubleshooting, scheduling maintenance and meeting regulatory compliance. Here are some simple points to be aware of.

Typical Level Based Functions:

• Pump Operation – On/Off
• Sump Level Indicator– High/Low
• Tank Level Indicator– High/Low/Full
• Leak Detection
• System Alarms

Common Types of Level Sensors:

• Conductivity Probes
• Floats
• Float Switches
• Pressure Transducers

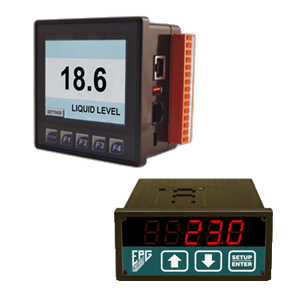

Level Meter Outputs:

• Power the Sensors
• Display Level and Set Points
• Control Pump On/Off
• Annunciate Alarms
• Communicate Status & Data
• Regulatory Compliance

Factors Impacting Level Accuracy:

• Vacuum
• Pressure
• Bad Connections
• Turbulence
• Sensor Stuck in or Covered with Mud
• Incorrect Range for Application
